In the renewable energy industry, hydrogen production by electrolysis plays a key role, especially when we are talking about green hydrogen. In our case study, we will analyze why conductivity monitoring is so important in this process and what technologies can increase its efficiency and safety. We will outline the challenges of using rainwater as a feedstock for electrolysis and present advanced solutions that helped our client achieve optimal results. Benefit from the experience of our client, a specialist in hydrogen production by electrolysis, and implement best practices in your company to maximize efficiency and profitability!
Green hydrogen plays key role in energy transition and drive to decarbonize economy
In the context of electrolysis, the conductivity of water is highly significant. This process relies on the flow of electric current through water, and for it to occur, the water must contain an adequate amount of ions. These ions conduct electricity, enabling the chemical reactions to take place at the electrodes. These ions can come from dissolved salts, acids, bases, or other electrolytes added to the water. Pure water, such as distilled water, has very low conductivity because it contains very few ions. Therefore, in practice, ionic substances are often added to increase the ion concentration and improve conductivity.
If the water's conductivity is too low, it indicates that the number of present ions is insufficient to conduct electricity effectively, leading to higher electrical resistance. As a result, more energy is required to push the current through the water, which increases operational costs and may reduce the efficiency of the electrolysis process. On the other hand, excessively high conductivity, caused by an overabundance of ions, can lead to undesirable side reactions. For example, deposits may form on the electrodes, or corrosion may occur, shortening the lifespan of the equipment.
Therefore, optimal water conductivity is essential to ensure the efficiency and safety of hydrogen production. It allows for a balance between having enough ions to conduct electricity effectively and minimizing the risk of unwanted chemical reactions that could negatively impact the equipment and the quality of the produced hydrogen.
Optimal conductivity of water is crucial in hydrogen electrolysis, as it ensures efficient conductivity and minimizes the risk of unwanted chemical reactions.
Our business partner, a company specializing in hydrogen production by electrolysis, has encountered several significant challenges with monitoring the quality of the rainwater used in the process. A key problem is ensuring the proper conductivity of the water, which is, as we mentioned, essential for efficient electrolysis. Rainwater can have variable ionic content, which affects conductivity and, consequently, the efficiency and safety of hydrogen production. To meet these challenges, the company needed an advanced monitoring system, including conductivity transducers and a compatible analytical system that would operate in real time and integrate with the electrolysis infrastructure.
Rainwater used in hydrogen electrolysis requires careful monitoring of conductivity due to its varying ionic content.

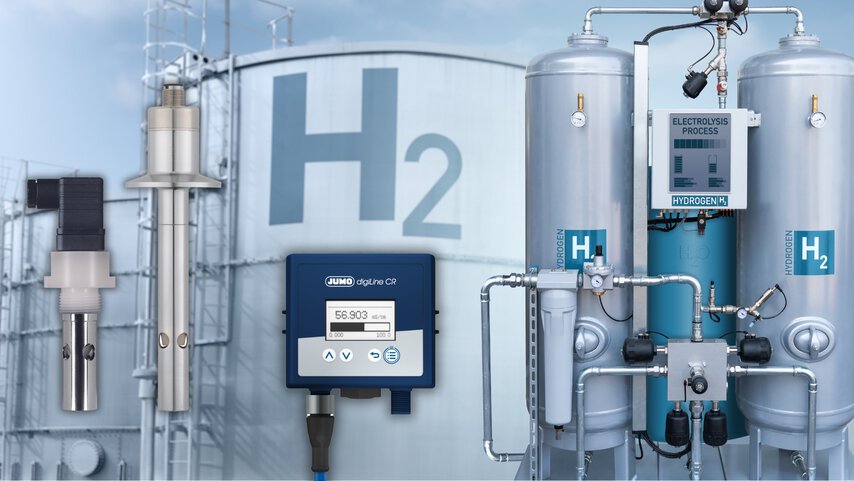

To ensure the purity of the water used in the electrolysis process and to protect the system from damage, we have implemented advanced conductivity monitoring technology. After treatment, the water is pumped into the electrolysis system, where its purity is monitored at the inlet. JUMO tecLine CR conductivity sensors are installed at key points, such as the end of the water supply pipe and the inlet to the electrolyser, to measure the electrolytic conductivity of the water. The data from these sensors is processed by the JUMO digiLine CR ST10 conductivity transmitter and then transferred to the monitoring system, enabling ongoing monitoring of water quality. Such a system enables the immediate detection of contaminants that may occur during the transport of water from the treatment system to the electrolysis unit, preventing premature wear and damage to the equipment. In this way, it is possible to maintain high water quality and optimum operating conditions for the electrolysis unit, so important for efficient hydrogen production.

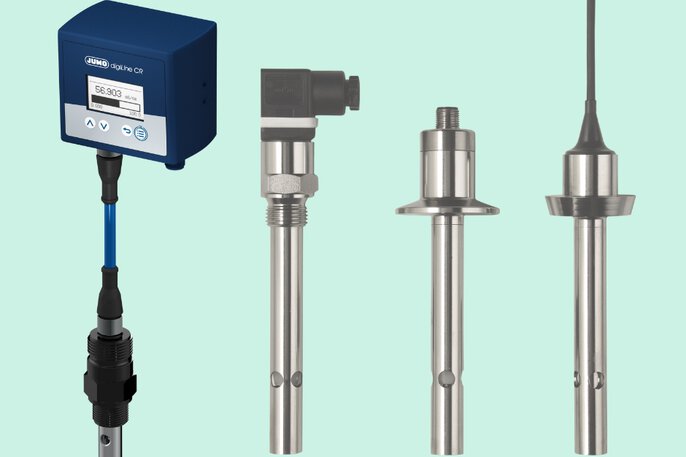

From left: hygienic conductivity sensors JUMO tecLine CR (202924) and digital conductivity transmitter JUMO digiLine CR (202762)
For our customer, it is essential that the purity of the water does not deteriorate during transport from the treatment system to the electrolysis equipment. Maintaining unchanged water quality ensures that the electrolysis process runs smoothly, preventing premature equipment wear and potential damage. Monitoring water purity parameters, such as conductivity, before it enters the electrolyzer ensures that the water supplied meets the same quality standards as water coming directly from the treatment system. This ensures that the entire hydrogen production process runs efficiently and safely, resulting in long equipment life.
Hydrogen electrolysis, especially using renewable hydrogen, plays a key role in industrial decarbonization and energy transition. Optimization of this process, especially by maintaining adequate water conductivity, is essential to ensure high efficiency and equipment durability. The use of advanced conductivity monitoring technologies allows for ongoing control of water quality, preventing equipment damage and ensuring the stability of hydrogen production. These solutions not only increase process efficiency, but also reduce operating costs and minimize the risk of failure. As a result, companies can produce clean hydrogen safely and economically, contributing to a sustainable energy future.
