Why is pressure measurement crucial in reverse osmosis? Desalination of seawater by reverse osmosis

Reverse osmosis is an advanced water purification process in which seawater is pushed through a semi-permeable membrane membrane process under high pressure to produce fresh water. This makes it possible to obtain clean drinking water from seawater or other contaminated water sources. In this post, we'll discuss how reverse osmosis works, why the right pressure is key, how to properly measure the pressure in the system, and which pressure transducer to choose for this purpose. Keep reading to learn more about the key aspects of this technology and how to ensure its effectiveness and reliability!

How does reverse osmosis work?

Reverse osmosis is an advanced separation process in which seawater is pushed through a semi-permeable membrane under high pressure. This membrane acts as a precision filter that allows water molecules to pass through, while retaining most salts, minerals and other impurities. This process makes it possible to obtain pure drinking water from seawater or other contaminated water sources.


Reverse osmosis

Reverse osmosis is an advanced purification method that involves pushing seawater through a semi-permeable membrane using high pressure.

Appropriate Water Pressure for Reverse Osmosis

To ensure the effectiveness of reverse osmosis in water purification and freshwater production, high pressure is essential. Seawater is subjected to a pressure range of 60 to 80 bar, necessary to push water through the semi-permeable membrane. This high pressure is required to overcome the natural osmotic pressure, which opposes the flow of water towards the membrane. Through this process, clean water (permeate) is separated from the concentrate containing a high concentration of salts (brine).

Consequences of Inadequate Pressure in Seawater Desalination Osmosis

Proper pressure is a crucial factor in ensuring the efficiency and safety of the reverse osmosis process. The consequences of inadequate pressure can be severe:

Too Low Pressure:

When the pressure is too low, the reverse osmosis process does not operate efficiently. Water is not adequately pushed through the membrane, leading to low-quality permeate. As a result, the produced drinking water may contain excessively high concentrations of salts and other contaminants, making it unsuitable for consumption.
Low pressure can also lead to a reduced flow rate through the membrane, decreasing system efficiency and increasing operational costs.

Too High Pressure:

Excessively high pressure can damage the semi-permeable membrane, leading to premature wear and the need for replacement. A damaged membrane fails to perform its filtration function, also resulting in low-quality drinking water.
Higher pressure increases energy costs and can cause failures in other components of the reverse osmosis system, further raising maintenance and repair costs.

Therefore, maintaining the appropriate pressure range of 60-80 bar is essential to ensure the effective, safe, and economical operation of the reverse osmosis system. Pressure monitoring is a critical component of managing the desalination process, allowing for the delivery of high-quality drinking water at minimal cost and maximum system durability.

How to measure the pressure in a reverse osmosis system?

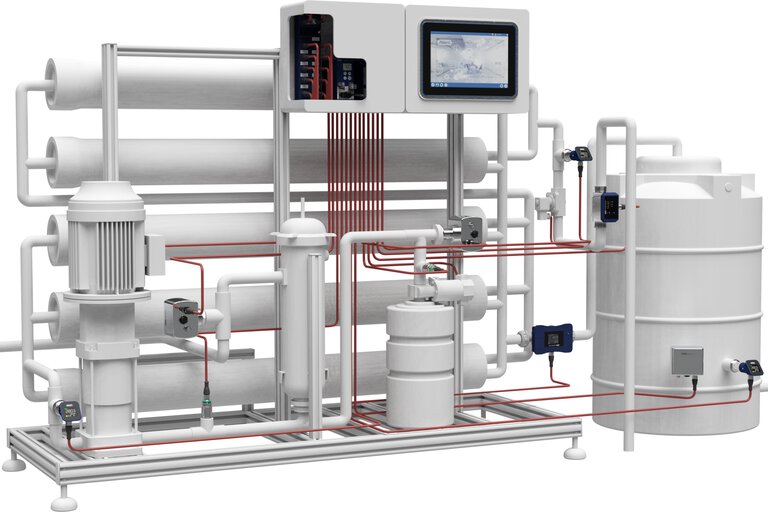

Measuring the pressure in a reverse osmosis system is a key step in ensuring the efficient and safe operation of the entire system. To accurately monitor the pressure, a variety of measuring devices are used, such as mechanical pressure gauges and electronic pressure transducers. These devices are installed at strategic points in the system - upstream and downstream of the osmotic membrane - to monitor water pressure on an ongoing basis. Pressure readings can be displayed on local gauges or transmitted to a central control system, which analyzes the data and alerts operators if deviations from optimal values are detected. Regular calibration and maintenance of measuring equipment is also essential to ensure the accuracy of measurements and reliability of the reverse osmosis system. By using the right measurement technology for pressure, the system's stable and efficient operation can be maintained, resulting in high quality drinking water.

Which pressure transducer to choose for measuring pressure before reverse osmosis?

Choosing the right pressure transducer to measure pressure in a reverse osmosis system is a key element in ensuring the reliability and efficiency of the entire process. The transducer should be characterized by high accuracy, corrosion resistance and the ability to operate under high pressure conditions. Also important is its compatibility with the control system and ease of integration. The durability of the device and the ability to calibrate and maintain it are important for long-term and reliable operation.

One excellent example of such a transmitter is the JUMO MIDAS C18 SW. This transmitter offers high precision and accurate measurements for efficient pressure monitoring. It is corrosion-resistant thanks to its materials, making it ideal for harsh seawater conditions. It is designed to operate in the high pressure range, which is essential in desalination systems. It easily integrates with existing monitoring and control systems, and its robust design and reliability minimize the risk of failure and ensure a long device life. Choosing the JUMO MIDAS C18 SW pressure transmitter allows you to efficiently and safely monitor the pressure in your reverse osmosis system, ensuring the high quality of the drinking water obtained and optimizing operating costs.

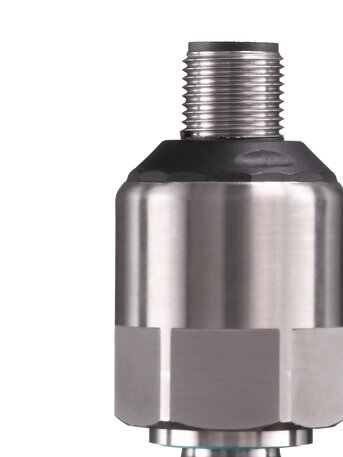

Pressure transmitter for marine applications JUMO MIDAS C18 SW (401012)

Reverse osmosis pressure transmitters for water desalination - summary

Pressure measurement is crucial in reverse osmosis, as it plays a critical role in the efficiency and safety of this advanced water purification process. Maintaining the right pressure in the 60-80 bar range is essential to effectively push water through the semi-permeable membrane, resulting in high-quality drinking water. Both too low and too high a pressure can lead to serious problems, such as poor permeate quality, membrane damage, increased operating costs and the risk of system failure. Therefore, precise pressure monitoring with appropriate transmitters, such as the JUMO MIDAS C18 SW, is essential to ensure stable and efficient operation of reverse osmosis systems, resulting in efficient seawater desalination and optimized operating costs.
