SIL (Safety Integrity Level) temperature sensors and pressure transmitters - how to choose the right devices?

In an industrial world where safety is a top priority, the role of SIL (Safety Integrity Level) temperature sensors and pressure transmitters is becoming increasingly important. Tragic events such as the explosion at a power plant in Connecticut in 2010 remind us of the crucial importance of precise monitoring and control of industrial processes. This catastrophe, which claimed the lives of six people and caused severe damage, highlights the importance of reliable safety systems in preventing accidents. The temperature sensors and pressure transmitters in SIL systems are designed to minimise the risk of such accidents. These devices not only track critical process parameters, but also provide an integral layer of safety in automated environments. In this blog post, we take a closer look at the requirements for pressure and temperature sensors working in safety systems and the criteria for selecting the right devices, as well as providing examples of SIL devices available in our range. Read on and find out how to keep safety at the highest level in your installation!

Introduction to SIL (Safety Integrity Level)

Safety Integrity Level (SIL) is a measure of the reliability of safety systems used in industrial automation to protect industrial processes and human life. SIL is important in industries where failures can have serious consequences, such as petrochemicals and power generation.

SIL levels

  • SIL1: Lowest level, for less risky processes. Equipment should have basic safety functions without advanced redundancy.
  • SIL2: Medium level, used in higher risk industrial applications. Some system redundancy and regular safety testing is required.
  • SIL3: High level, used in very high-risk applications. Requires high redundancy (e.g. triple), advanced diagnostic systems and more frequent safety tests.
  • SIL4: Highest level, for extreme risk. Includes the highest degree of redundancy, advanced control and diagnostic systems and the most stringent safety procedures.

    Each SIL level requires detailed system design and testing to meet specific safety standards. The right choice of SIL level is crucial to ensuring safety in the industry.
SIL

The right choice of SIL level is crucial to ensure safety in industry

The SIL (Safety Integrity Level) requirements for temperature sensors and pressure transmitters

In the context of Safety Integrity Level (SIL), temperature sensors and pressure transmitters must meet specific requirements:

  • Reliability and Durability: They must be resistant to harsh industrial conditions and maintain stable operation.
  • Accuracy: High accuracy and repeatability of measurements are necessary.
  • Redundancy: Depending on the SIL level, redundancy may be required, involving the use of multiple sensors to ensure continuous operation in case of failure of one or more of them.
  • Self-Diagnostics: Devices should be able to diagnose problems autonomously and alert to faults.

Ensuring compliance with SIL standards:

  • Selection of appropriate devices: Sensors and transmitters that meet the required SIL levels must be carefully chosen, including analysis of technical specifications and safety certifications.
  • Certification and testing: Regular testing and certification of devices by accredited bodies are essential to maintain compliance with SIL standards. These tests include both performance evaluation and resistance to various operational conditions.
  • System Integration: Devices must be properly integrated with the entire safety system, ensuring compatibility with other components and control systems.
  • Training and operational procedures: It's important that the personnel operating and maintaining these devices are properly trained and aware of procedures related to SIL, including both daily operation and emergency response.
  • Ensuring SIL compliance for temperature sensors and pressure transmitters is a key element in ensuring safety in the industry. This requires close cooperation between device manufacturers, safety system engineers, and industrial operators.
JUMO Safety Performance

JUMO devices bearing the Safety Performance brand are suitable for use in safety applications

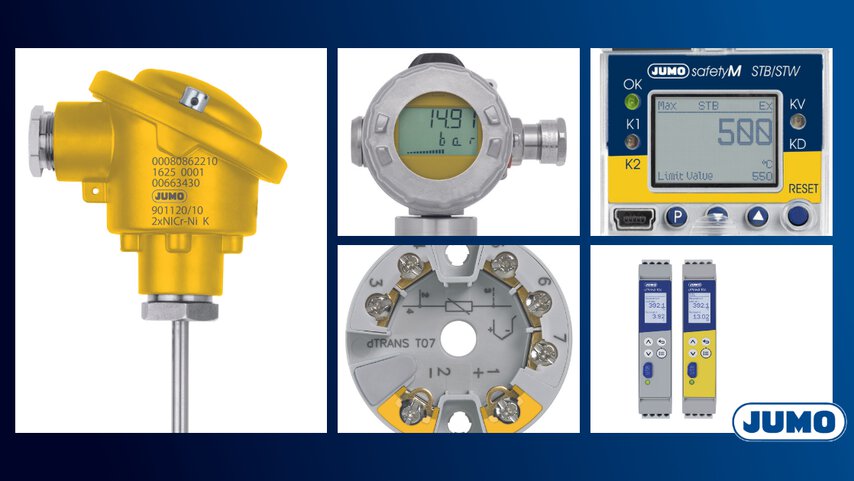

Sensors, transmitters and temperature limiters used in SIL systems

In the dynamic world of industry where precision and reliability are essential for safety, temperature sensors, transmitters, and limiters used in Safety Integrity Level (SIL) systems must meet stringent requirements. To comply with SIL standards, these devices need exceptional measurement accuracy, ensuring critical precision for industrial processes. Their long-term stability is equally important for reliable operation even under challenging conditions.

High SIL standards also demand advanced self-diagnostic features from these devices, enabling quick detection and response to anomalies. Temperature sensors, transmitters, and limiters must be made from materials resistant to extreme environmental conditions often found in the industry and be compatible with other safety and control systems. Depending on the application, certifications like ATEX/IECEx for explosive environments may be required.

A key product in this field is the safetyM temperature limiter and monitor, part of the JUMO Safety Performance brand, providing advanced functional safety solutions. The JUMO safetyM STB/STW, certified to SIL levels 2/3, offers high reliability for demanding applications. Pt100 resistance temperature sensors and thermocouples with SIL certification can be directly connected to this device, simplifying the implementation of safety systems without additional transmitters.

For temperature transmitters, JUMO offers advanced devices like dTRANS T06 Ex and dTRANS T07, designed for explosive environments and SIL approved. These transmitters, with universal measurement inputs, are versatile and suitable for various industrial conditions, offering the reliability and precision required in critical manufacturing processes.

SIL resistance temperature sensor

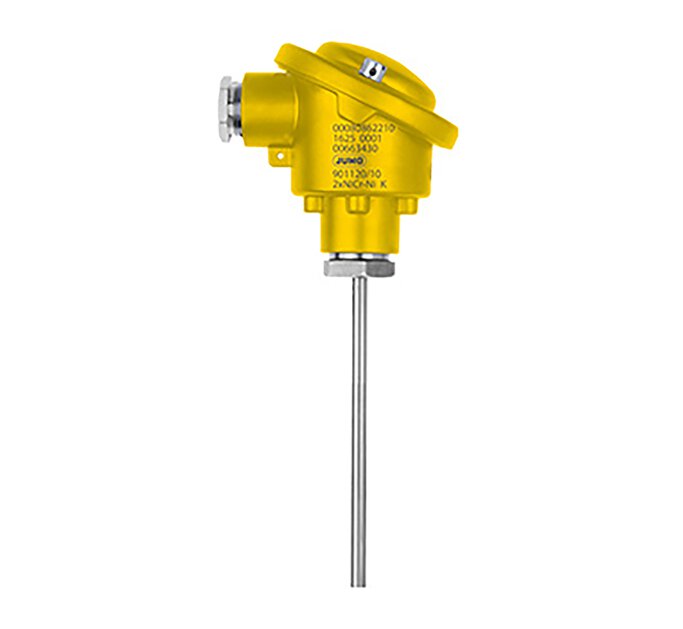

Resistance temperature sensor with SIL approval

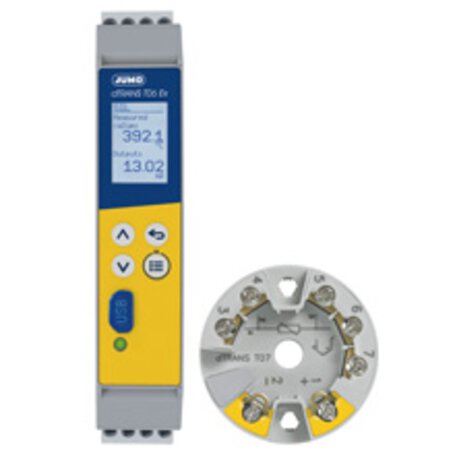

Temperature transmitter with SIL-approval for Ex zones JUMO dTRANS T06 Ex

Temperature transmitter with SIL-approval for Ex zones JUMO dTRANS T06 Ex

Electronic safety temperature limiter/monitor according to DIN EN 14597 / ATEX JUMO safetyM STB/STW Ex

Electronic safety temperature limiter/monitor according to DIN EN 14597 / ATEX JUMO safetyM STB/STW Ex

SIL certified pressure transmitters

In the dynamic world of industry where precision and reliability are essential for safety, temperature sensors, transmitters, and limiters used in Safety Integrity Level (SIL) systems must meet stringent requirements. To comply with SIL standards, these devices need exceptional measurement accuracy, ensuring critical precision for industrial processes. Their long-term stability is equally important for reliable operation even under challenging conditions.

High SIL standards also demand advanced self-diagnostic features from these devices, enabling quick detection and response to anomalies. Temperature sensors, transmitters, and limiters must be made from materials resistant to extreme environmental conditions often found in the industry and be compatible with other safety and control systems. Depending on the application, certifications like ATEX/IECEx for explosive environments may be required.

A key product in this field is the safetyM temperature limiter and monitor, part of the JUMO Safety Performance brand, providing advanced functional safety solutions. The JUMO safetyM STB/STW, certified to SIL levels 2/3, offers high reliability for demanding applications. Pt100 resistance temperature sensors and thermocouples with SIL certification can be directly connected to this device, simplifying the implementation of safety systems without additional transmitters.

For temperature transmitters, JUMO offers advanced devices like dTRANS T06 Ex and dTRANS T07, designed for explosive environments and SIL approved. These transmitters, with universal measurement inputs, are versatile and suitable for various industrial conditions, offering the reliability and precision required in critical manufacturing processes.

DTRANS p20 Ex d series pressure transmitters

Criteria for selecting suitable temperature sensors and pressure transmitters for different SIL levels

Selecting the right temperature sensors and pressure transmitters for different SIL (Safety Integrity Level) systems involves understanding and assessing several key factors. The criteria to consider include:

SIL Level:

  • SIL1 for basic safety control in less critical applications.
  • SIL2 for medium risk systems with higher reliability and advanced self-diagnostics.
  • SIL3 for high-risk applications requiring very high reliability, redundancy, and advanced safety features.
  • SIL4, the highest level, demands the most stringent standards including advanced systemic redundancy and extreme low failure probability.


Accuracy and Stability: Choose devices with the lowest possible non-linearity and best long-term stability.

Measurement Range: Devices should operate across the full range of temperatures and pressures in the application and withstand extreme environmental conditions.

Compliance with Standards: Sensors and transmitters must comply with relevant norms and regulations like IEC 61508 for SIL.

Materials and Construction: Devices should be made from materials resistant to corrosion and contamination.

Diagnostic Features: Advanced features like self-diagnostics and communication with process management systems are essential.

Certifications: In explosive environments like the oil and gas industry, ATEX/IECEx certifications are important.

JUMO products, such as the dTRANS series and Safety Performance, reflect these requirements, offering reliability across a range of industrial applications.
